V2
Inlet-gallery stator + the software/hardware split. v1 (rig + quote) stays frozen on v1.

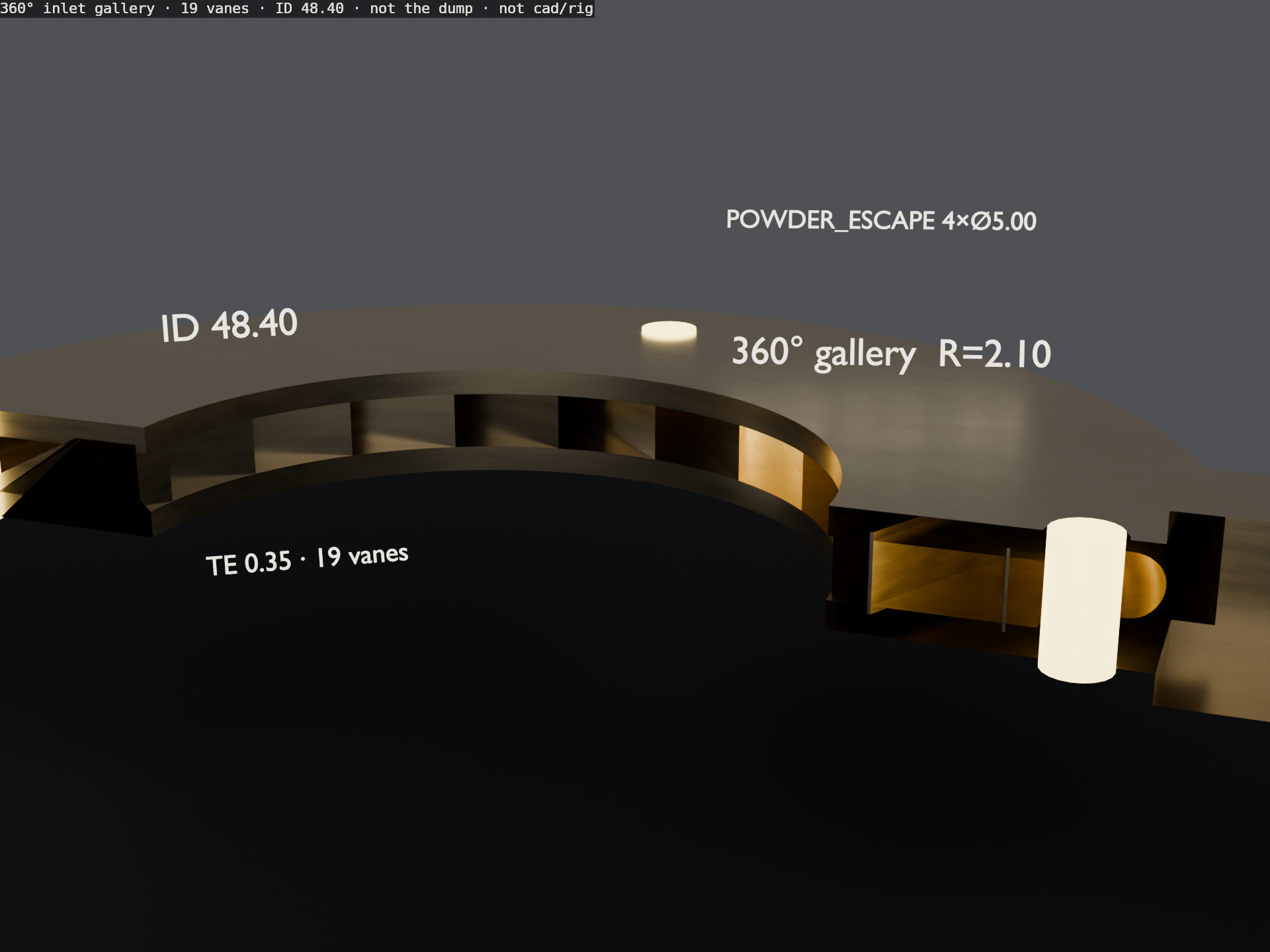

Stator
| Item | Value |
|---|---|
| Vanes | 19 |
| ID | 48.40 |
| Gallery | 360° R=2.10 |
| Powder escape | 4× Ø5.00 at 90°, empty after print (Forge signed) |
| Mass | 0.228 kg Haynes 282 |
| Housing OD | 95 |
| TE | 0.35 |
| NOT | not the dump, not Velo, not trip-safe, not CFD step 6. |
Pipeline · CFD · STEP hosts both projects' files and shows v1 chrome.
