CAD

Print TE is 0.55 and finish TE is 0.40, tip machined Ø48.00, not AFM. Frozen foil-rig stills only.

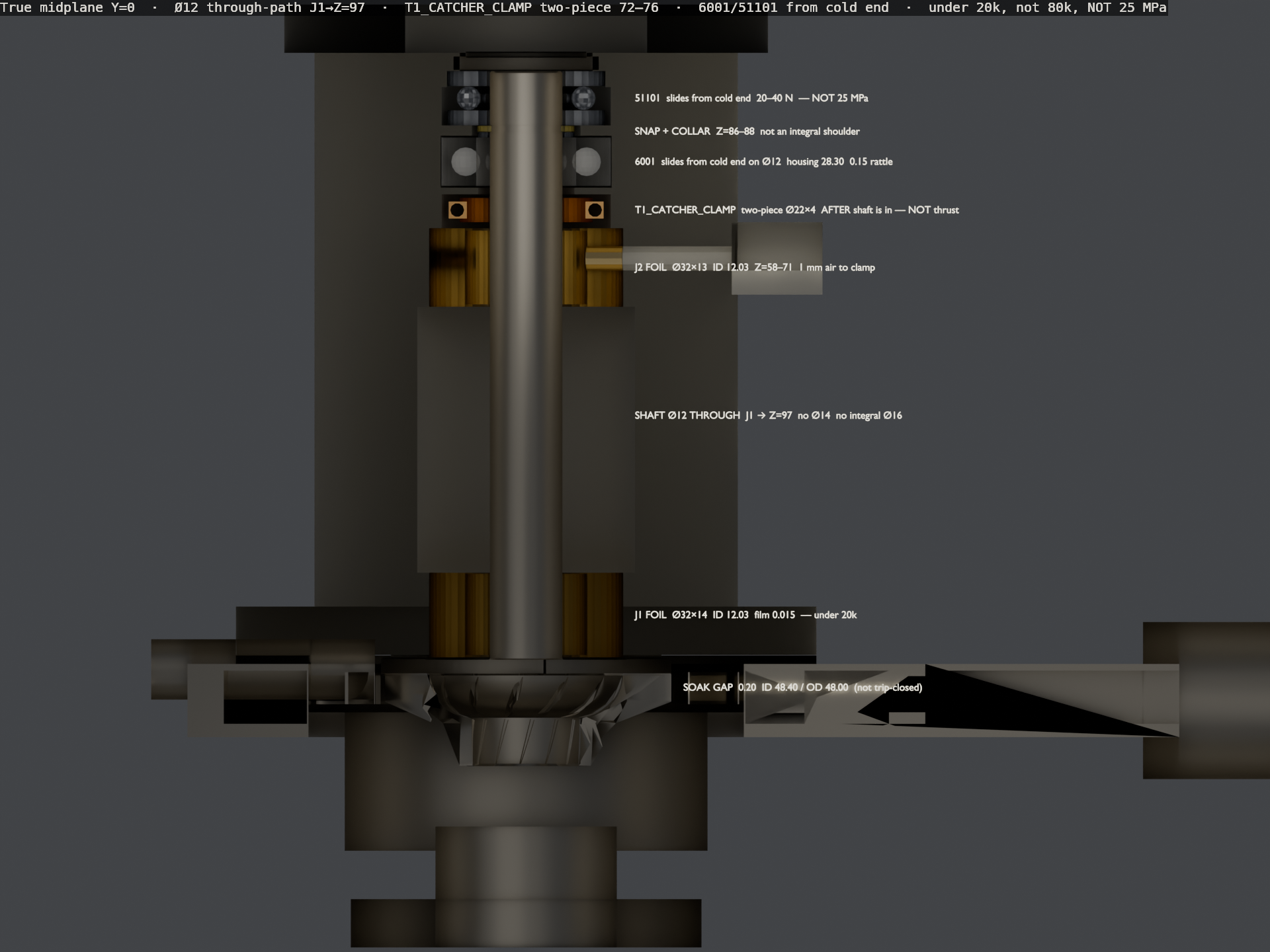

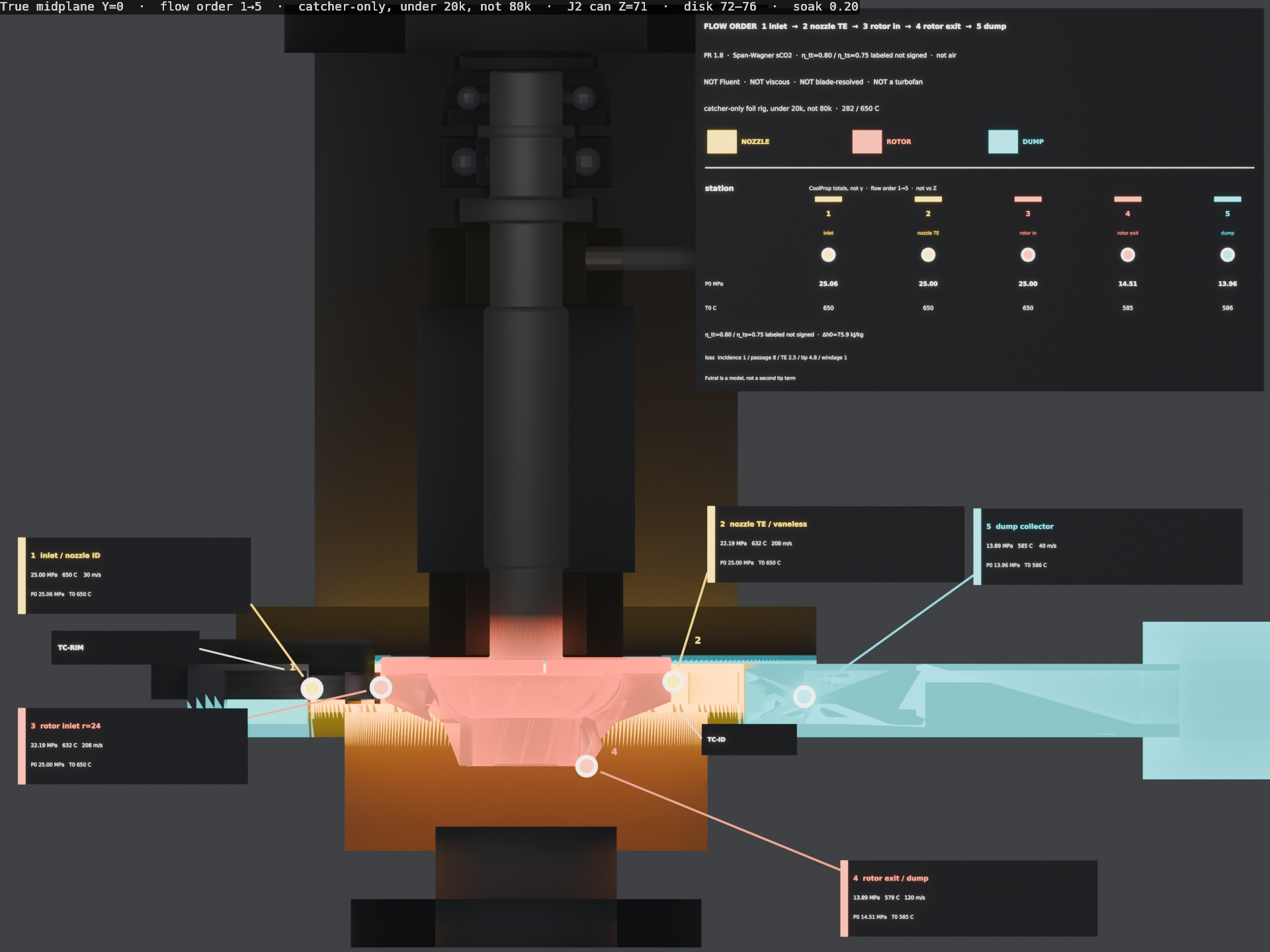

CAD midplane of the Ø12 through-path foil rig
True midplane Y=0 — shaft Ø12 THROUGH, J1 → Z=97. No Ø14 swell, no integral Ø16. Foil IDs 12.03. Catcher-only foil rig, under 20k. A render, not hardware. NOT Fluent, NOT viscous, NOT blade-resolved.

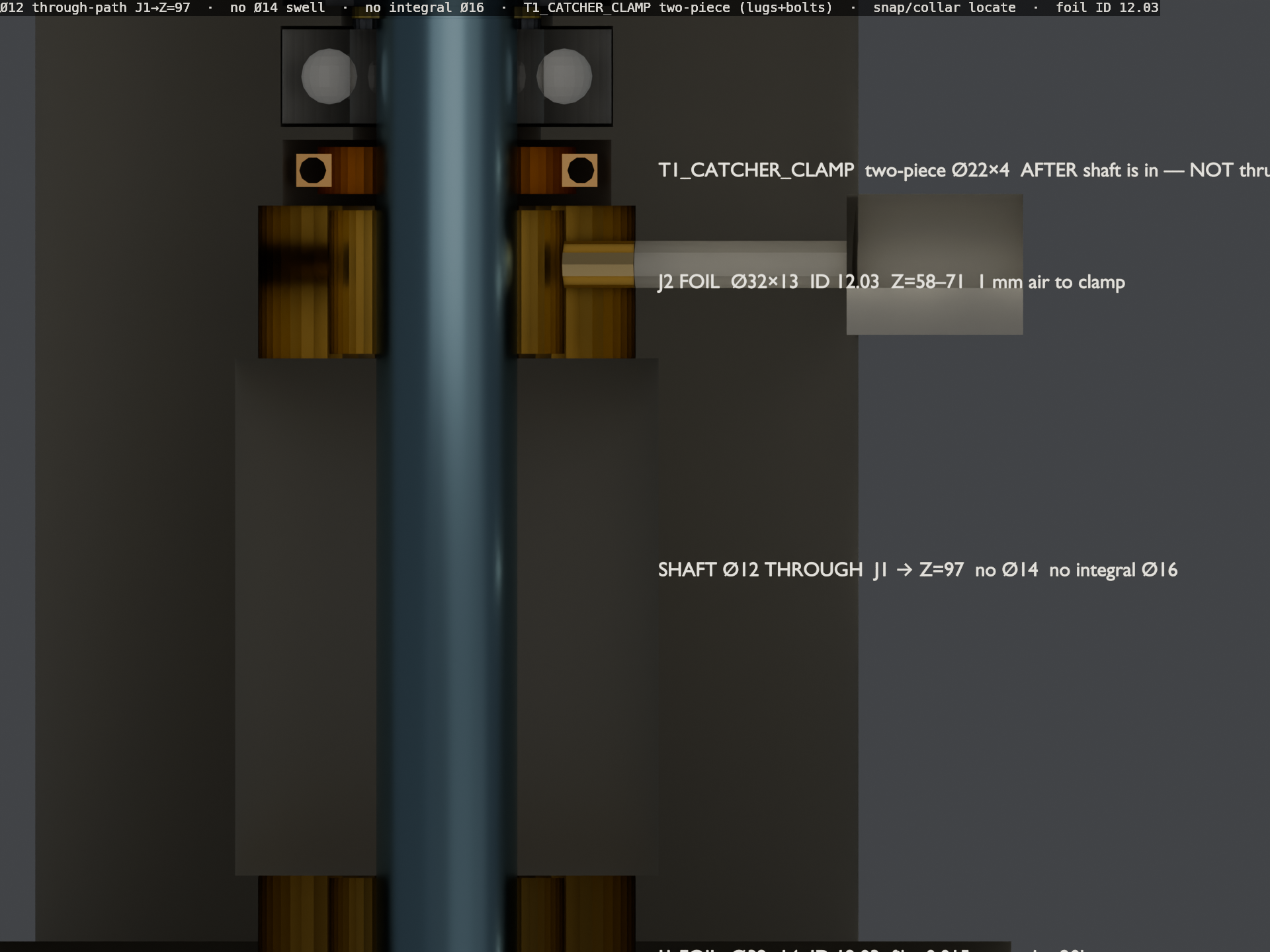

Shaft through-path still with the two-piece catcher clamp
Shaft path — Ø12 through-path J1 → Z=97. T1_CATCHER_CLAMP two-piece Ø22×4, fitted AFTER the shaft is through the cans — NOT thrust, NOT integral, NOT a stepped journal. J2 foil Ø32×13, ID 12.03, Z=58–71, 1 mm air to the clamp. A render, not hardware. Mate recut 2026-08-31: the cold-end locate is the named T1_7001_IR 7001 CE/HCP4A stack at Z=88–96 (the 51101 land voice is superseded); the finish rotor is NOT in the assembly. A pre-mate render, not re-shot.

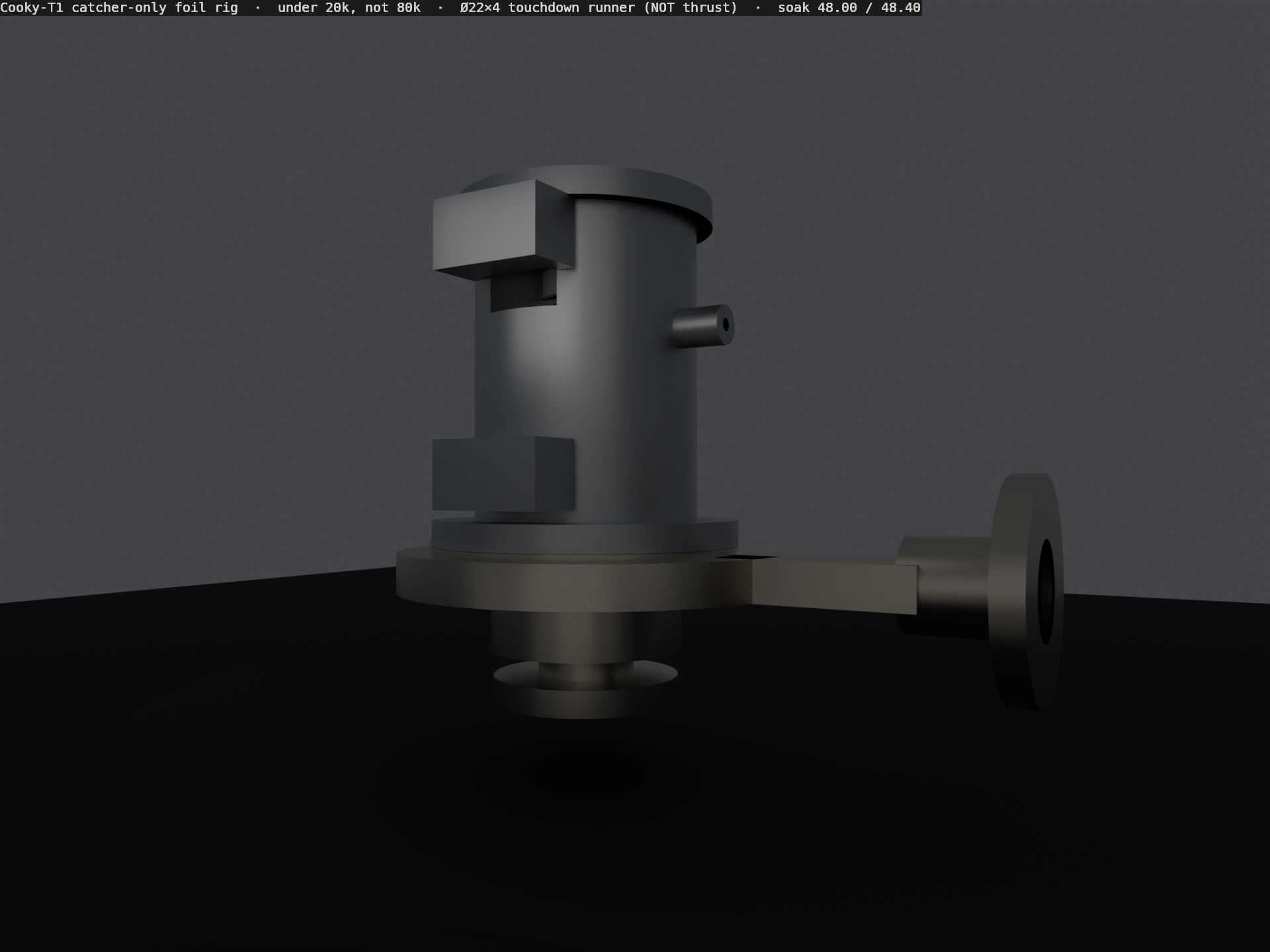

CAD three-quarter still of the catcher-only foil rig
Cooky-T1 catcher-only foil rig, three-quarter still — Ø12 through-path assembly. Two-piece T1_CATCHER_CLAMP Ø22×4 — NOT thrust, NOT integral, NOT a one-piece disk on a stepped journal. A render, not hardware.

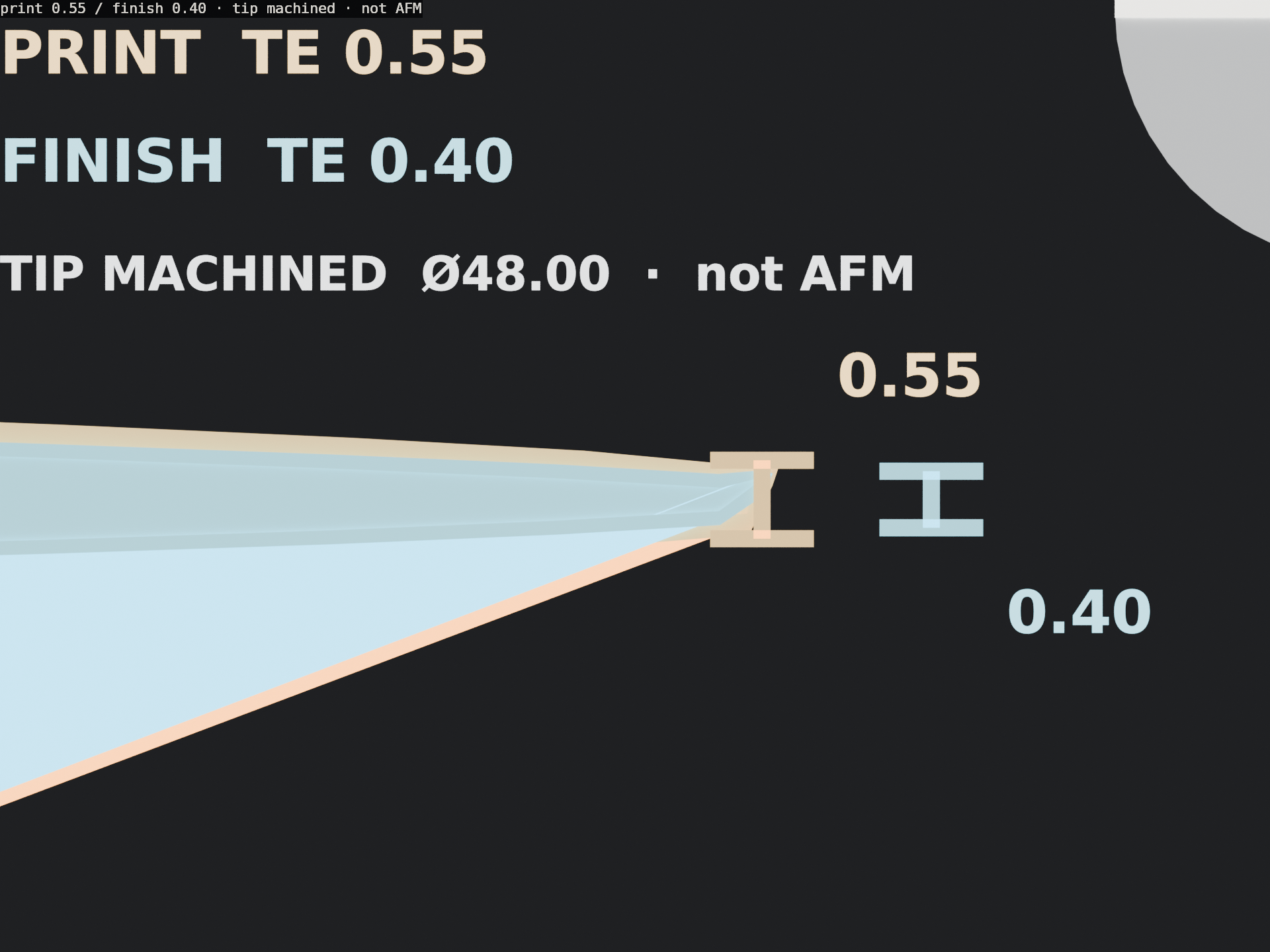

Trailing edge print 0.55 versus finish 0.40
TE print 0.55 vs finish 0.40, tip machined Ø48.00. NOT AFM. The finish solid is a sibling record only — NOT in the assembly STEP after the 2026-08-31 mate recut. 13-blade wheel / TE 0.40 / tip Ø48.00 NOT recut.

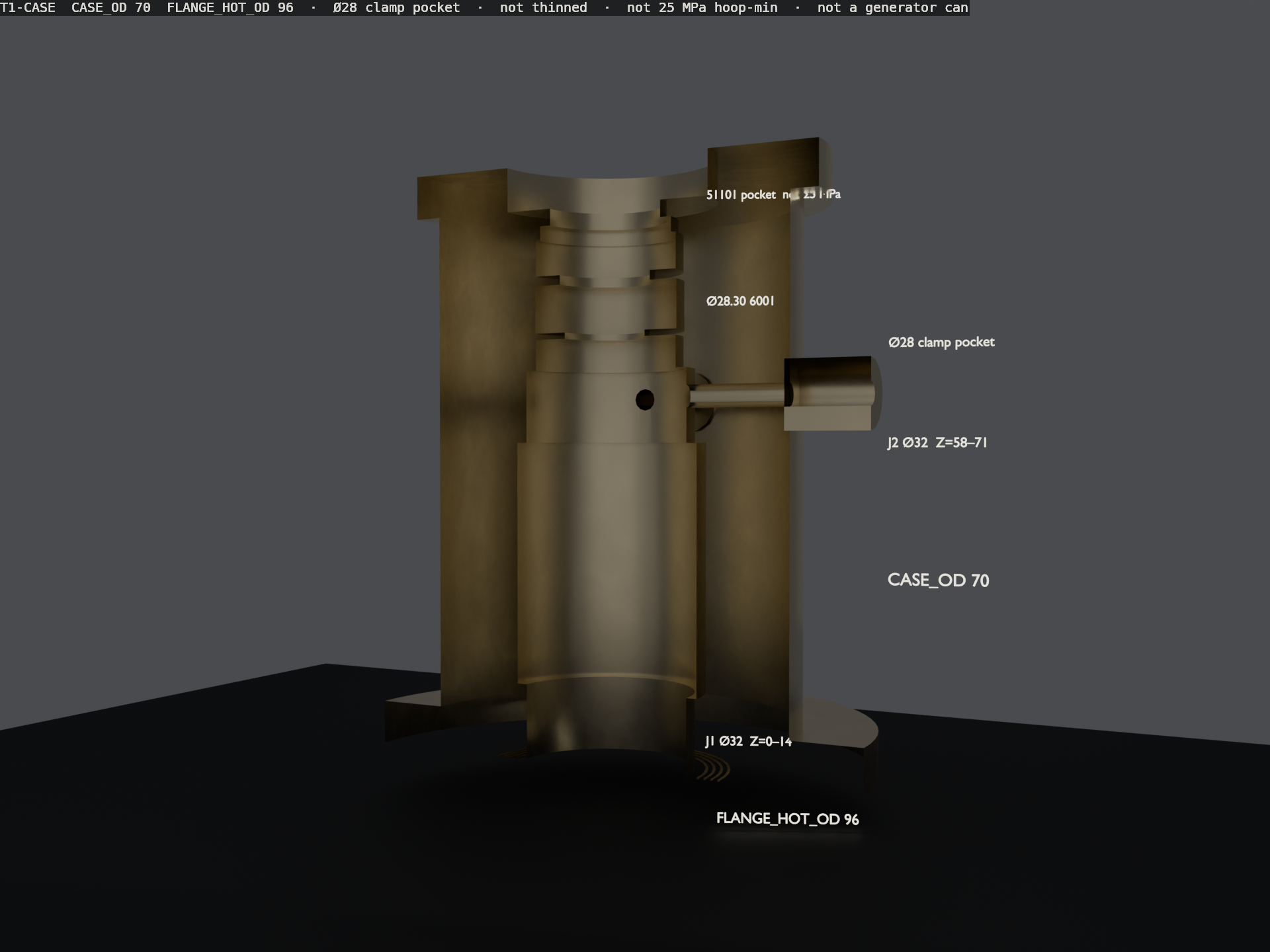

T1-CASE bearing housing extracted from the foil-rig solids
T1-CASE bearing housing — Ø70 body, hot flange Ø96, catcher pocket Ø28 (clamp + lugs), Ø28.30 6001 housing, 2.652 kg (was 2.914 pre-mate), 17-4. Mate recut 2026-08-31 (B3DO): the case ends at the mate (Z=100.00) — the cover no longer occupies case metal, Case∩cover = 0 (review P0-1). A mate recut, NOT a vane recut. NOT thinned. NOT 25 MPa hoop-min. NOT a generator can. NOT sent to Velo. Still the frozen render.

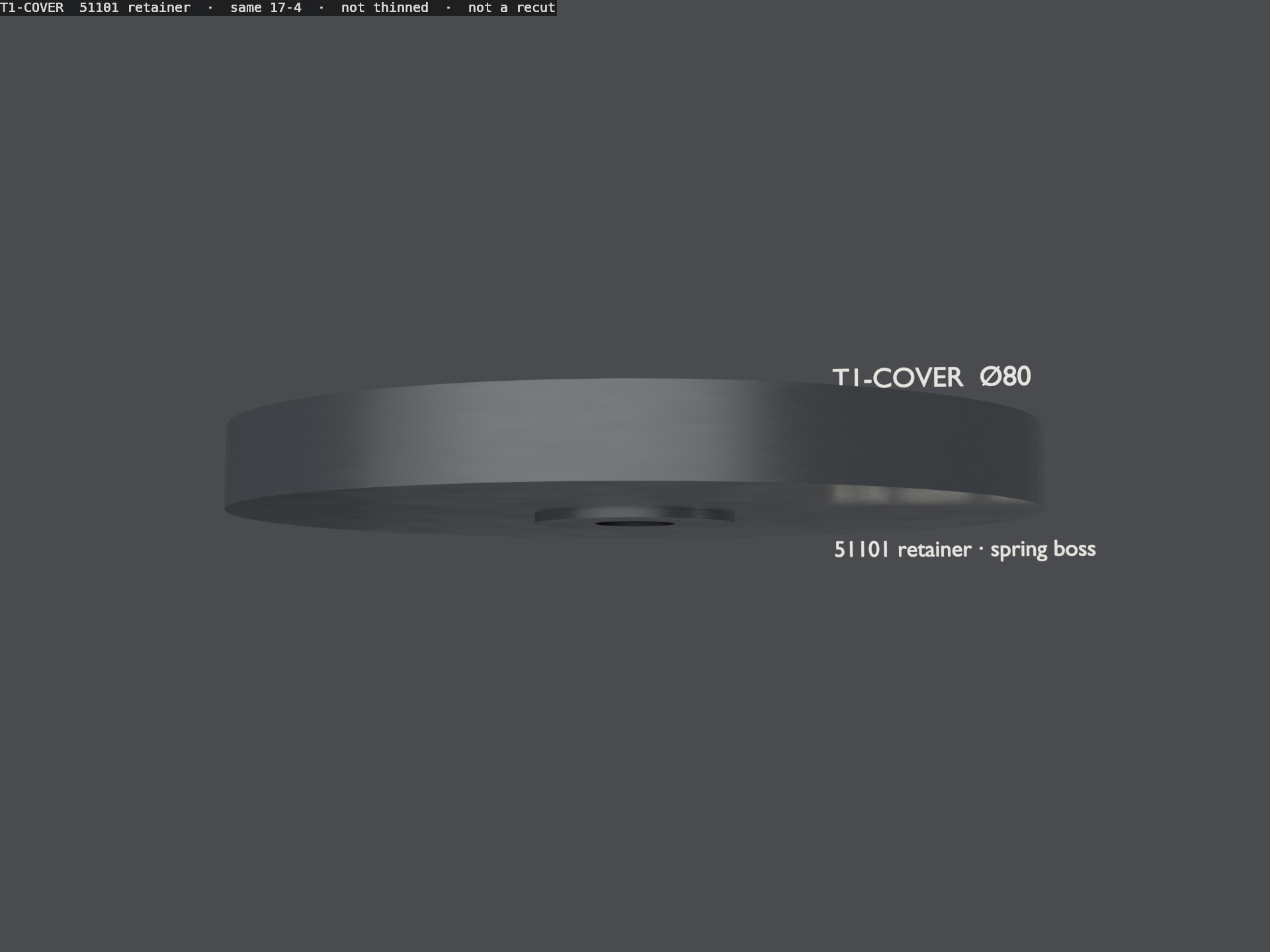

T1-COVER cold cover extracted from the foil-rig solids
T1-COVER cold cover — 7001 retainer / spring boss, plate Z=100.10–108.00 (0.10 gasket). No longer a 51101 retainer on a coincident flange: the cold-end stack is the 7001 CE/HCP4A IR stack, named T1_7001_IR, at Z=88–96. Re-extracted at the 2026-08-31 mate recut (B3DO), 17-4, 0.309 kg (box README). A mate recut, NOT a vane recut. NOT sent to Velo. Still the frozen render.
